Information

Pre-Screen

Rotary drum screens

Self-cleaning externally fed – suitable for oils & fats screening
Self-cleaning internally fed – suitable for high flows, low solids content

Band screens

Suitable for fine solids removal >= 3mm

CPI Unit

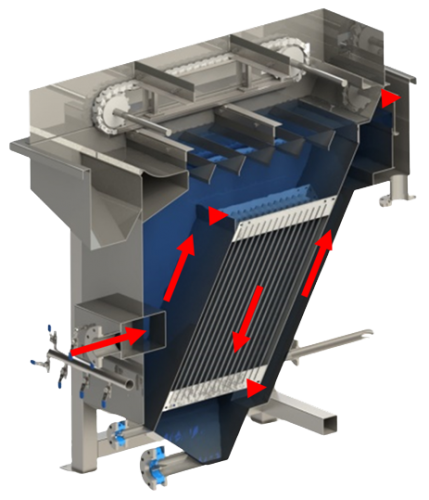

Corrugated Plate Interceptor (CPI)

Low capital cost
Low operating cost
Small footprint

IGS

Medium capitol cost
Low operating cost
Handles high oil loads

API

High capital and operating cost
Handles high oil and hydraulic loads

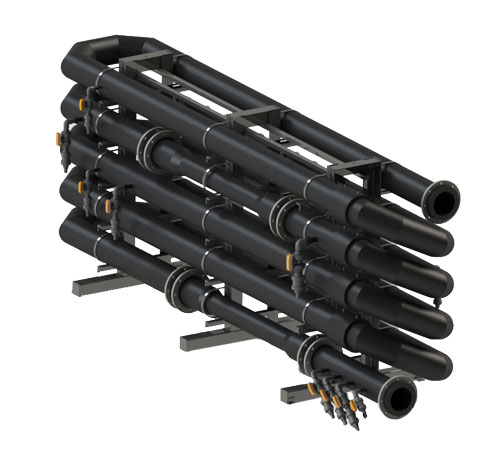

Flocculator

Used for coagulation and flocculation of suspended solids to enhance separation

Uses static mixing, no moving parts
Multiple chemical injection ports
Can be made from various materials of construction as per client needs

DAF Unit

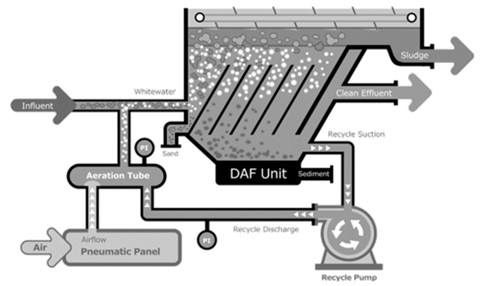

Dissolved Air Flotation is used to remove COD, SS, and fats, oils and grease.

High Rate DAF is designed for smaller footprint. Read more: https://www.frcsystems.com/products/high-rate-dafs/
Open Tank DAF is designed for high hydraulic and solids loading. Read more: https://frcsystems.com/products/open-style-dafs/

Sludge

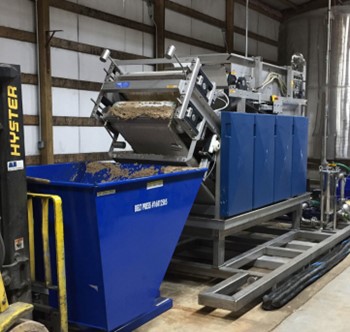

Belt press system includes chemical preparation, gravity thickening and belt press. The belt press system is stacked which creates a very small footprint.

MBR / MBBR

MBR and MBBR used for biological removal of BOD/COD, nitrogen, phosphorus.

MBR uses membrane to remove biomass, resulting in high SS operation and small footprint. Read more: https://www.frcsystems.com/products/mbr/
MBBR uses carriers to increase surface area for biological growth. Read more: https://www.frcsystems.com/products/mbbr/
